Precast foundation blocks

Building with precast foundation blocks improves efficiency, construction speed and the consistent quality of the final product. The precast blocks are designed, produced and installed by Vroom with a KOMO-KIWA product certificate. The prefabricated elements contribute to a shorter execution time.

Application

  • Housing construction
  • Apartments
  • Utility construction (structure)

Advantages

The construction time at the building site is significantly reduced.
Less deployment of production personnel on the construction site is needed; two people and a mobile crane with an operator are sufficient for execution. The quality of the final result in precast concrete work is consistent. It usually results in savings because fewer piles are used. Moreover, the piles are often shorter.

Vroom offers a complete foundation package that usually ends at the top of the ground floor. The precast foundation blocks are often combined with precast foundation beams, precast lay-down areas, dimensioning and the installation of the ground floors, including pouring. If necessary, a combination is made with in-situ poured concrete.

Assembly

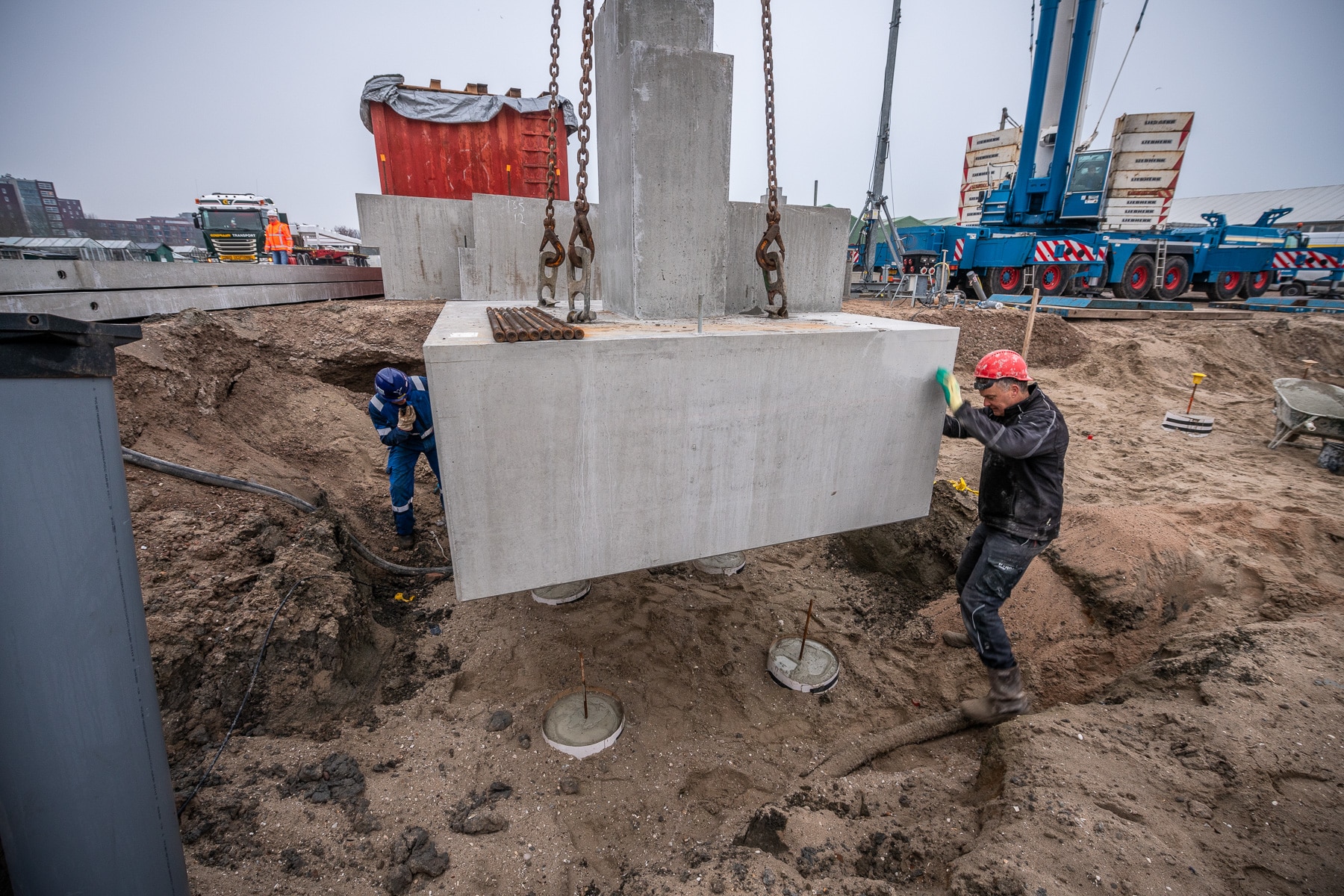

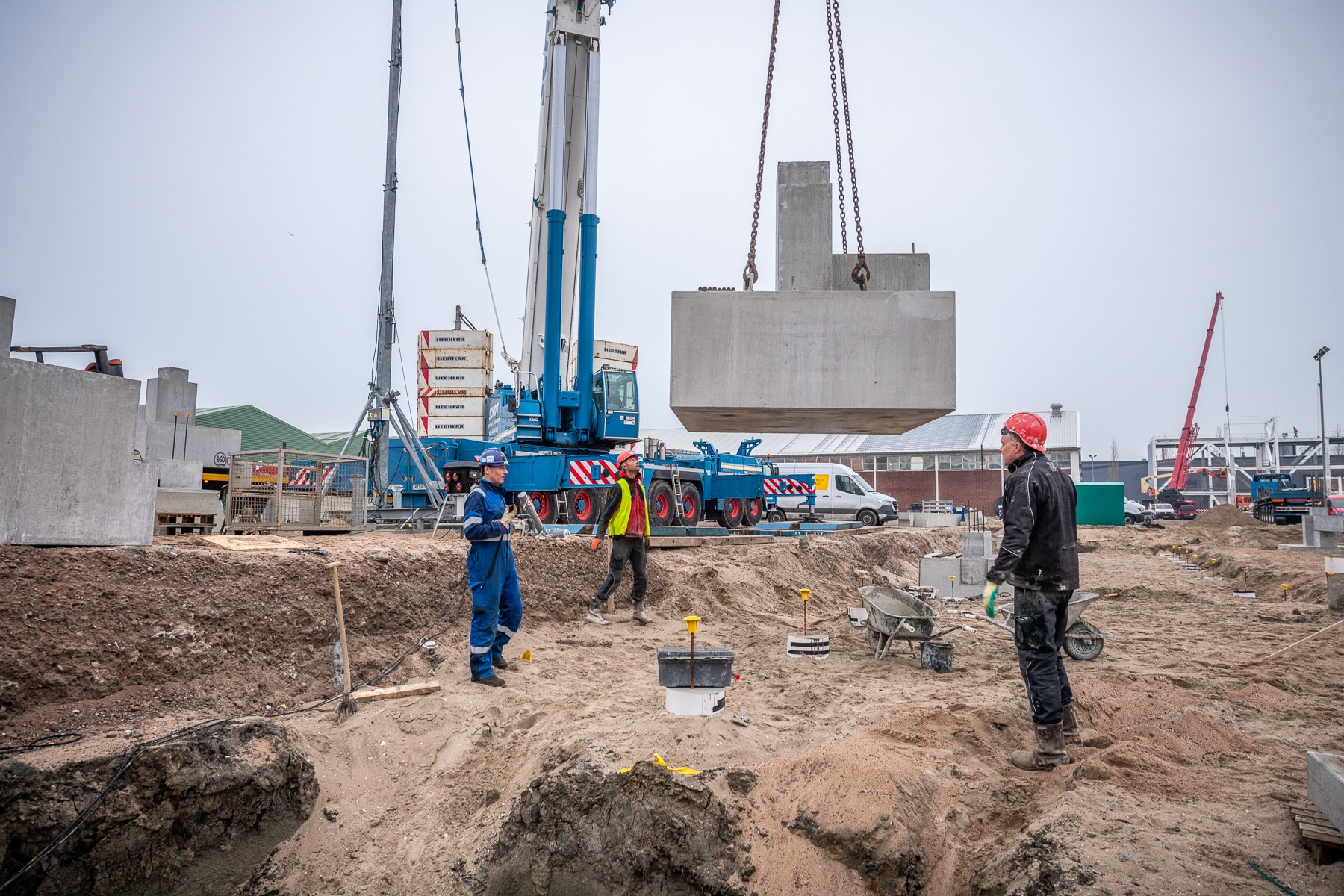

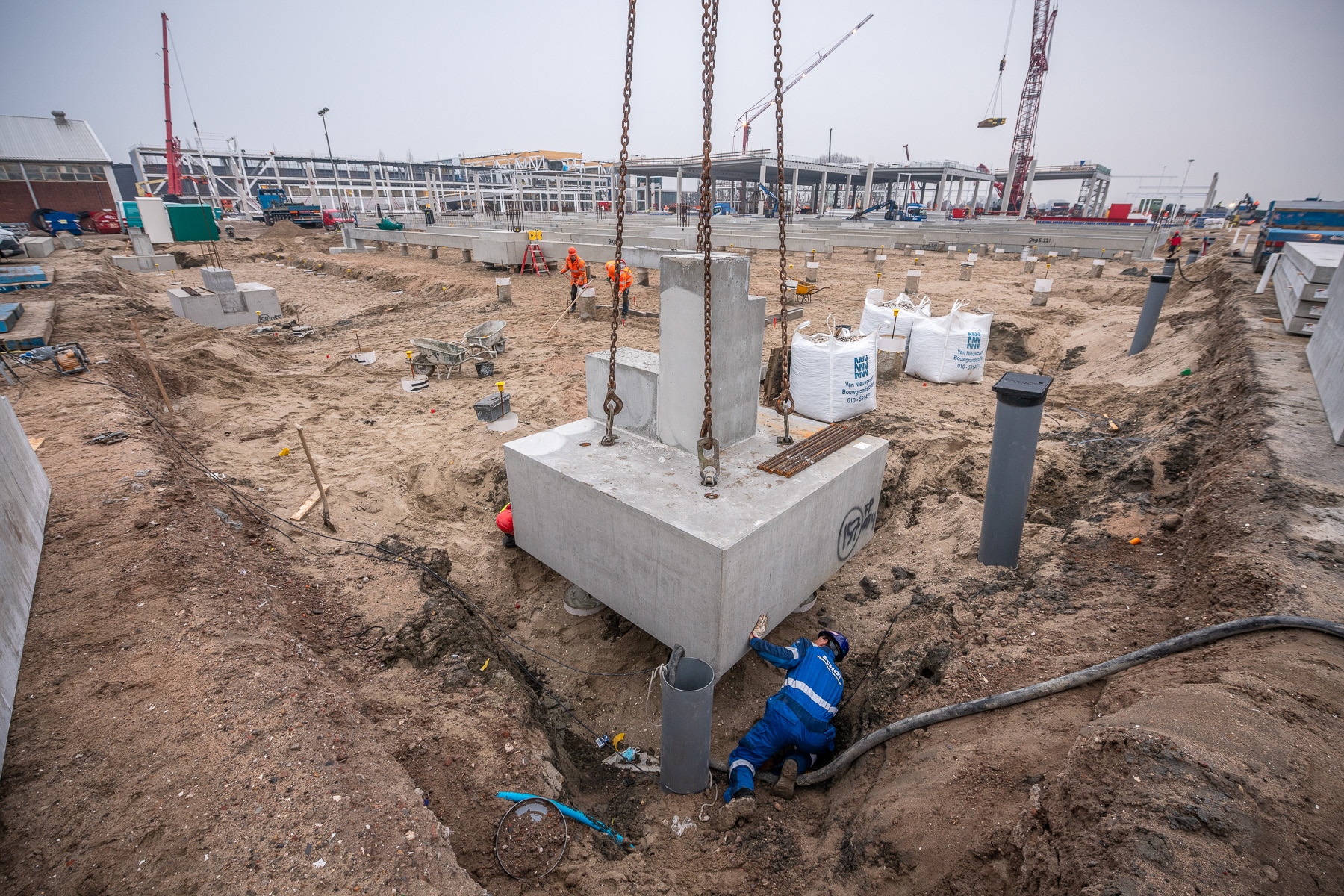

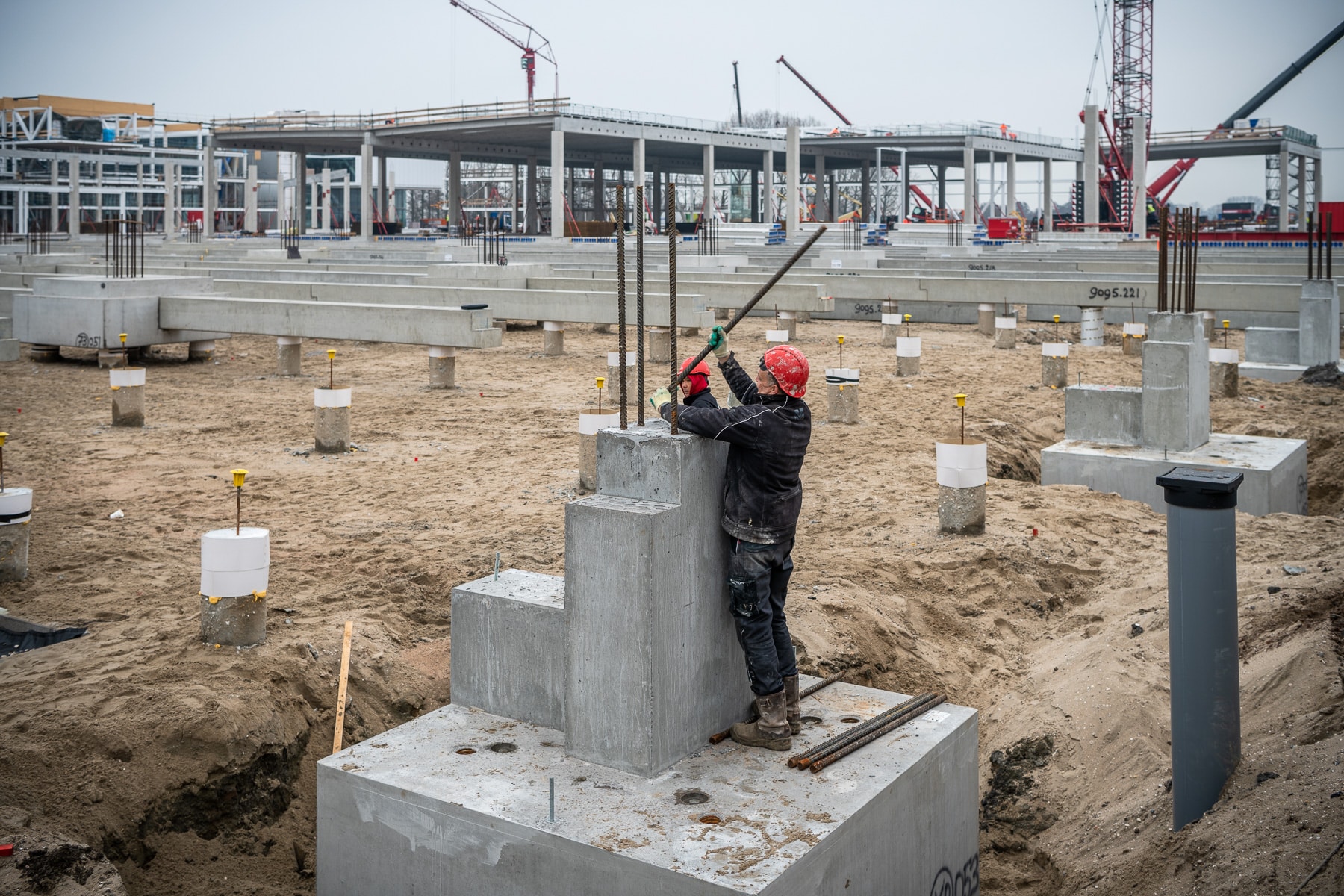

The precast foundation blocks are mounted with a telescopic crane or mobile crawler crane, depending on the element weights and the distance at which they need to be placed.

Precast foundation blocks
Precast foundation blocks
Precast foundation blocks
Precast foundation blocks
Precast foundation blocks

Advantages

The construction time at the building site is significantly reduced.
Less deployment of production personnel on the construction site is needed; two people and a mobile crane with an operator are sufficient for execution. The quality of the final result in precast concrete work is consistent. It usually results in savings because fewer piles are used. Moreover, the piles are often shorter.

Vroom offers a complete foundation package that usually ends at the top of the ground floor. The precast foundation blocks are often combined with precast foundation beams, precast lay-down areas, dimensioning and the installation of the ground floors, including pouring. If necessary, a combination is made with in-situ poured concrete.

Assembly

The precast foundation blocks are mounted with a telescopic crane or mobile crawler crane, depending on the element weights and the distance at which they need to be placed.

Technical data

Concrete Quality

Minimum C40/50 XC3 F4.

Steel Quality

Meshes B500A, bars B500B.

Tolerances

In accordance with NEN2889.

Integration and Pouring Provisions

  • HSF transfer sets
  • PVC conduits
  • Couplings (supplied)
  • Anchor groups
  • DEMU anchors
  • Dowel anchors
  • Reinforcement boxes
  • Rebates
